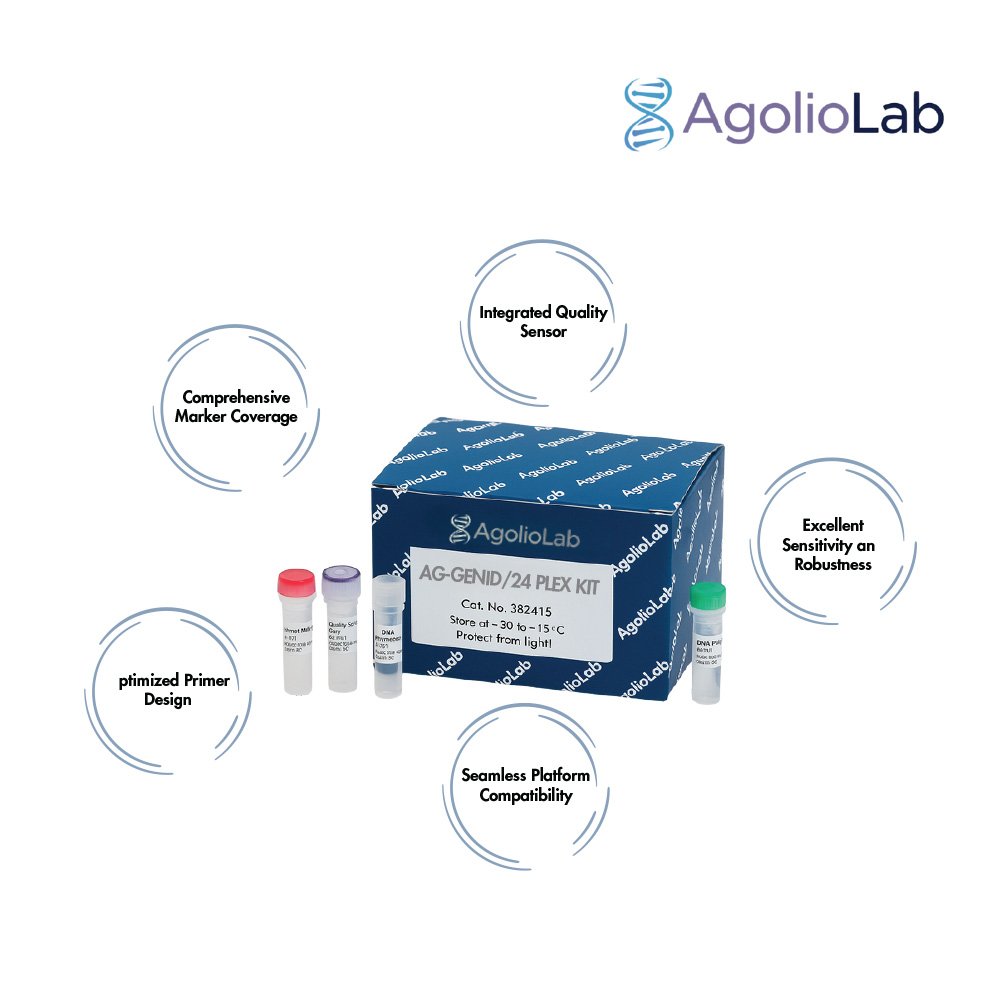

AG-GENID/24 PLEX KIT

  • The Ag-GenID Plex Kits deliver high-performance solutions for modern forensic identification, optimized for both reference and challenging casework samples.
  • Primer Mix, Fast Reaction Mix including Taq DNA Polymerase, Control DNA, allelic ladder 24plex, DNA size standard 24plex (BTO), and nuclease-free water

Description

AG-GENID/24 PLEX QS KI T (For Casework DNA)
The QS Kit is optimized for extracted forensic DNA samples.

AG-GENID/24 PLEX QS KIT

Features include:

  • Amplification of 22 STR loci + Amelogenin + QS in ~60 minutes
  • High success rate with trace and compromised samples
  • Clean baseline and balanced peak heights for improved mixture deconvolution
  • Reliable gender typing across global populations
  • Maximized allele recovery from inhibited or low-template DNA

Idea for:

  • Crime scene samples
  • Degraded biological material
  • Mixed DNA profiles
  • Forensic laboratories requiring high sensitivity and reproducibility

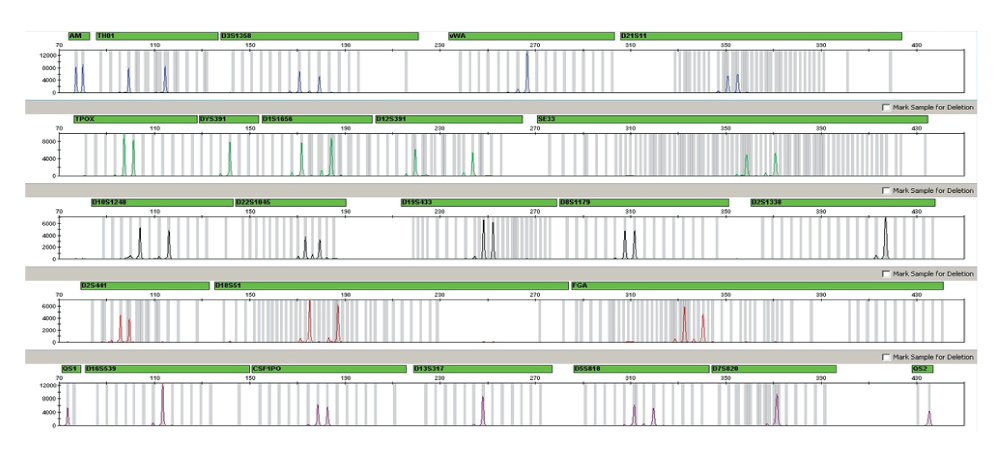

Figure 1. Electropherogram of control DNA 9948. The sample was amplified in the presence of 500 μM hematin, which did not interfere with amplification, meaning that a high-quality profile was obtained. This can be seen as the Quality Sensor fragments QS1 (lowest panel on the left) and QS2 (lowest panel on the right) were not adversely affected, indicating a successful run.

🔬 Table. 1 Technical specifications

Specification Ag-GenID/24plex QS Kit Ag-GenID/24plex GO! Kit
DNA input volume Up to 1.5 $mu$l 1.2 mm FTA punch or 2 $mu$l lysate
Volume per reaction 25 $mu$l 20 $mu$l
Matrix BT6 BT6
Fluorescence dyes 6-FAM$^{text{TM}}$, BTG, BTY, BTR2, BTO, BTP 6-FAM, BTG, BTY, BTR2, BTO, BTP
Genetic Analyzers Applied Biosystems 3500 Genetic Analyzers Applied Biosystems 3500 Genetic Analyzers

Table. 1 Dyes and Markers

Dye Markers
6-FAM Amelogenin, TH01, D3S1358, vWA, D21S11
BTG TPOX, DYS391, D1S1656, D12S391, SE33
BTY D10S1248, D22S1045, D19S433, D8S1179, D2S1338
BTR2 D2S441, D18S51, FGA
BTP QS1, D16S539, CSF1PO, D13S317, D5S818, D7S820, QS2

🛒 Ordering Information

Product Contents Cat. no.
Ag-GenID/24 plex QS Kit (100) Primer Mix, Fast Reaction Mix 2.0, Control DNA, Allelic Ladder 24plex, DNA Size Standard 550 (BTO), Nuclease-Free Water 382415
Ag-GenID/24 plex QS Kit (400) Primer Mix, Fast Reaction Mix 2.0, Control DNA, Allelic Ladder 24plex, DNA Size Standard 550 (BTO), Nuclease-Free Water 382417
Ag-GenID/24 plex GO! Kit (200) Primer Mix, Fast Reaction Mix 2.0, Control DNA, Allelic Ladder 24plex, DNA Size Standard 550 (BTO) 382426
Ag-GenID/24 plex GO! Kit (1000) Primer Mix, Fast Reaction Mix 2.0, Control DNA, Allelic Ladder 24plex, DNA Size Standard 550 (BTO) 382428
Ag-GenID/24 plex GO! Punch Buffer (200)* Lysis buffer for 200 samples of epithelial cells on paper 386526
Ag-GenID/24 plex GO! Lysis Buffer (200) Lysis buffer for 200 swab samples 386516
Matrix Standard BT6 (50) Matrix standard 6-FAM, BTG, BTY, BTR2, BTP and BTO 386224
